Fixed cone valves from Glenfield Invicta supplied to hydropower station in Zimbabwe.

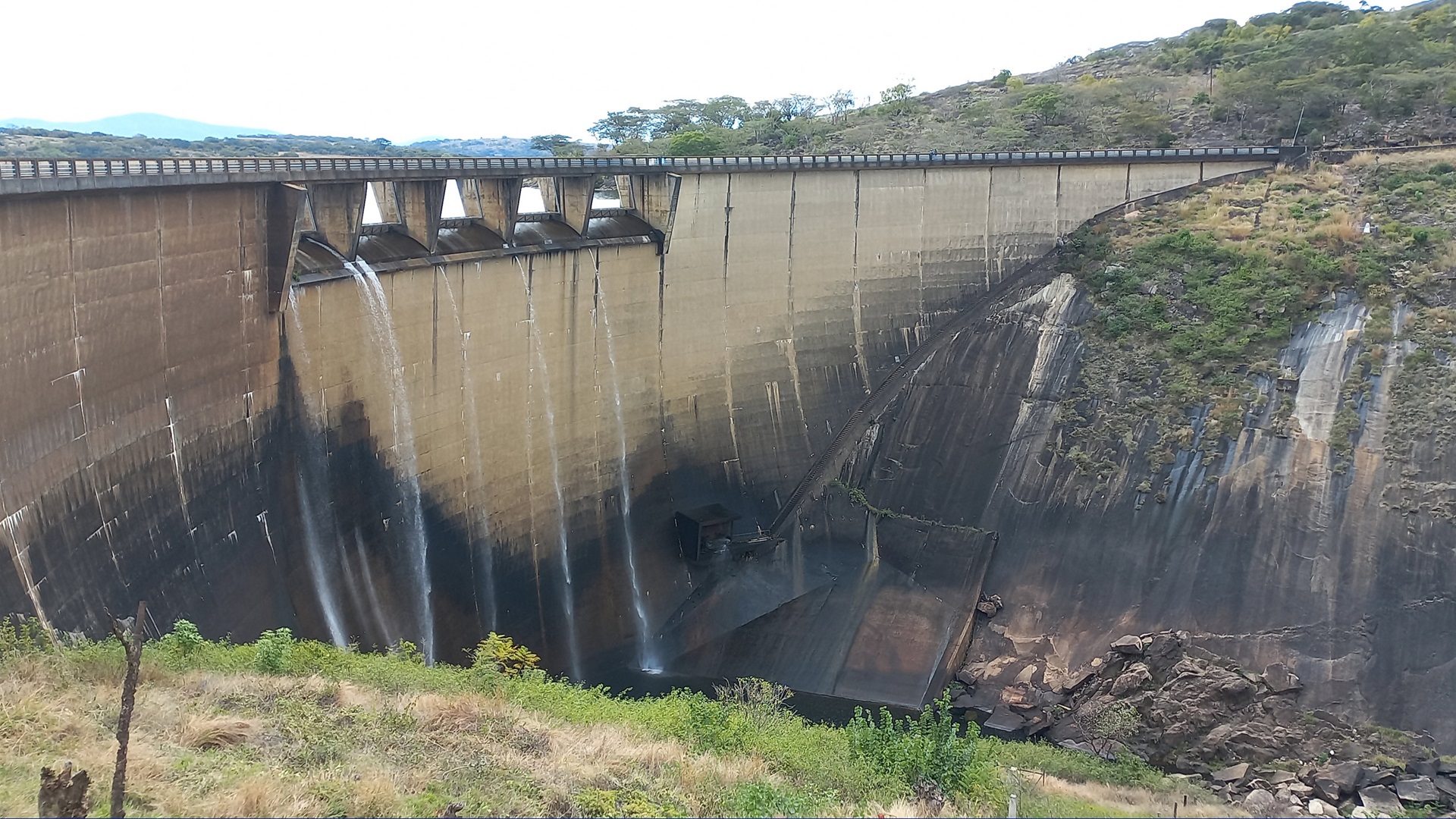

The energy dissipating valves at a dam bottom outlet required replacement. Originally installed in the 1950s, these valves were non-standard in size and had been welded directly onto the pipeline rather than connected via, for instance, flanged joints.
Turning natural water flow into reliable energy

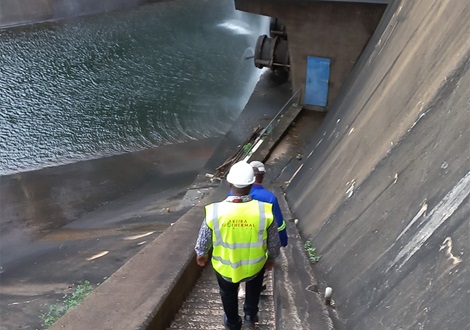

This project introduces the addition of a 5MW run-of-the-river hydropower station to an existing dam, previously only serving drinking water and irrigation purposes without any hydropower production. By making use of the river’s natural flow, the new station will help to meet Zimbabwe’s power supply challenges.AVK was asked to develop a solution that would ensure lasting operational efficiency and value. To secure the best outcome, experts from AVK Valves Southern Africa visited the site to assess the existing installation. Based on this assessment, an agreement was made to manufacture and deliver two DN1100 fixed cone sleeve valves to the new hydropower facility.

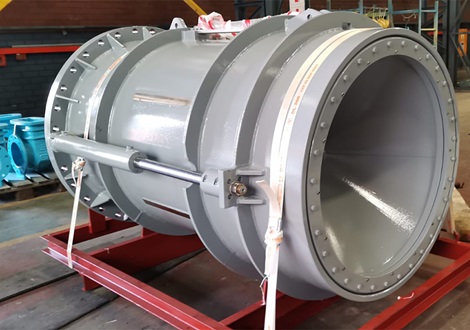

Fixed cone valves deliver precision in flow control and energy dissipation
Fixed cone valves are designed for energy dissipation and accurate flow control at pipeline outlets, operating effectively even at high flow rates and velocities. They are primarily used at dam outlets where it may be necessary to bypass turbines, maintain compensation flow to rivers, manage rapid drawdowns, regulate reservoir levels and remove fine sediment through desilting.Energy dissipation is achieved by releasing a thin conical sheet of water into the atmosphere, where most of the energy is absorbed as droplets fall into a stilling pond. Inside the valve, the flow is split by internal guide blades before being directed through the fixed conical outlet. Retracting the horizontal stainless steel sleeve enables the discharge of a high-velocity, controlled jet. Because dissipation occurs in open air, the risk of cavitation is eliminated. The cylindrical sleeve maintains hydraulic balance during operation, helping to minimise the operational forces required.
